Tak vas pani vsetkych pekne zdravim( aj damy samozrejme ) a rozbieham tento thread, kedze tato seria od Yamahy si zasluzi lepsiu osvetu. Je to velmi zaujimava seria analogovych nastrojov a fakt je ten, ze najpopularnejsia z celej serie je hadam CS-80 a zaroven je aj nepisanou legendou medzi synthesizermi.. sice vobec netusim cim to je( mame tu Prophet Five, ARP 2600... ), no ale to je jedno. nakoniec tento trhead je na to urceny, kde je ta pravda zakopana( mozte pisat len pravdu a nic len pravdu )...
chcel som sem pridat aj CS1x, CS2x a CS6x... ale ehm... neviem, ono su to fajn masiny ale ostanme u tych analogoch.. toto su romplery a spolocne maju naozaj len oznacenie CS..
spisal som udaje ktore budem postupne doplnat.. ak najdete cokolvek na nete tak sem pastnite a ja to doplnim.. ak si vsimnete je tam aj eZone users.. tak ak nahodo danu masinu mate, tak tiez sem napiste a doplnime
hadam sa nam podari spravit pekny archiv tu na nasom eZone ohladom tejto serie CS.. kto ma chut moze zacat otvarat thready s inou znackou a inou seriou ktorej sa moze tiez venovat.. urcite to bude zaujimave citanie a diskusia detto..
tak...
...
Yamaha CS-01
Specifications:
- Polyphony - Monophonic
- Oscillators - 1 VCO - triangle / saw / square / pulse / PWM
- LFO - Sine waveform
- Filter - 12dB Cutoff / Hi or Lo resonance with ADSR (24dB on mkII)
- VCA - 1 ADSR envelope gen
- Keyboard - 32 mini keys
- Memory - None
- Control - Breath Controller; CV/Gate via kit from Kenton
- Date Produced - 1982, (1984 mkII)
- - Example 1
Yamaha CS-5
Specifications:
- Polyphony - Monophonic
- Oscillators - 1 VCO with pulse or sawtooth waveforms and noise-gen
- LFO - Yes, with sine, sawtooth, sample and hold
- Filter - 1 filter: 12dB/oct High pass or Low pass; 6dB/oct band-pass
- Effects - None
- Keyboard - 37 keys
- Memory - None
- Control - CV / Gate
- Date Produced - 1979-83
- - Example 1
Yamaha CS-10
Specifications:
- Polyphony - Monophonic
- Oscillators - 1 VCO + white noise (sawtooth, variable PW)
- LFO - 1 LFO (sine or sawtooth with rate speed)
- Filter - 1 multi-mode VCF
- VCA - 2 ADSR envelopes
- Keyboard - 37 keys
- Memory - None
- Control - CV / Gate
- Date Produced - 1981
- - CS-10 / ZOOM 9150 5-track overdub - BPF - EP - Pulse - Saw
- Thread :
Yamaha CS-15
Specifications:- Polyphony - Monophonic / Duophonic
- Oscillators - 2 VCOs
- LFO - One with triangle, saw and S&H waveforms
- Filter - Two multimode (LP/BP/HP). Controlled by either or both ADSRs.
- Effects - None
- Keyboard - 37 keys
- Memory - None
- Control - Dual CV/Gate
- Date Produced - 1979 - early '80s
- - CS-15 Don Solaris: Modifications Demo 1 - CS-15 Don Solaris: Modifications Demo 2
- Users :
- Tudy
- Threads :
- CS-15
Yamaha CS-15D
Specifications:- Polyphony - Monophonic
- Oscillators - 1 VCO per section
- LFO - 1 (sine, square, s/h, repeat)
- Filter - 1 12dB/oct (2-pole) lowpass filter with dedicated ADSR
- VCA - 1 ADSR
- Keyboard - 37 keys
- Memory - 29 presets, no user
- Control - Dual CV and Gate
- Date Produced - 1979-1982
- - Demo processed - CV Control
- Users :
- a.tom.x
Yamaha CS-20m
Specifications:- Polyphony - Monophonic
- Oscillators - 2 +1 sine osc. in VCA section
- LFO - 1
- Filter - 1 filter with low, band or hi pass; ADSR envelope
- VCA - 1 ADSR; additional sine wave generator
- Keyboard - 37 keys
- Memory - 8 patches
- Control - CV / Gate
- Date Produced - 1979
- - Example 1 - Example 2 - Example 3
Yamaha CS-30 / CS-30L
Specifications:- Polyphony - (1) Monophonic
- Oscillators - 2 VCOs
- Arpeg/Seq - Sequencer (Only 8 notes, 1 pattern)
- Effects - None
- Keyboard - 44 Keys
- Memory - None
- Control - CV/Gate, External Trigger
- Date Produced - 1977 - 1980
- - Example 1 - CS-30 Moogulator Demo - Tinny Drums - Kraftwerk - Arpy Lead - Square Filter Pan - Filter Sweep - Filter Sweep RM and FM - Filter Sweep Multiple Mod - How Did I Do This? - On The Run - Robotto - Tolling Bell - Tolling Bell 2 - River Flow
- Users :
- [CS-30] EXCOM
- [CS-30L] a.tom.x
<- CS-30

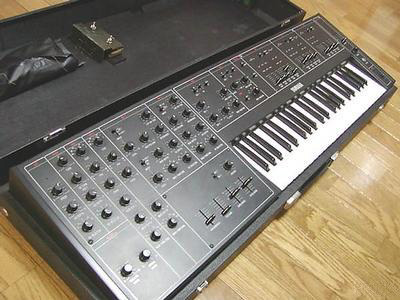

<- CS-30L
Yamaha CS-40m
Specifications:- Polyphony - (2-voices) Duophonic
- Oscillators - 2 VCO's + noise gen. Triangle, Sawtooth, Square (Pulse) waveforms.
- LFO - Waveforms: sine, up-ramp, down-ramp, square, and sample-and-hold.
- Filter - multimode: Low-, Band-, High-Pass w/ cutoff, resonance, and ADSR envelope controls
- VCA - ADSR (x5 switch)
- Arpeg/Seq/Effects - None
- Keyboard - 44 keys (3 1/2 octaves)
- Memory - 20 patches via 2 banks of 10 presets; external cassette interface
- Control - CV/Trigger outputs for each voice and CV inputs for portamento, sustain, brilliance, volume and filter.
- Date Produced - 1980 - 1986
Yamaha CS-50
Specifications:- Polyphony - 4 voices, monotimbral
- Oscillators - Four (1 VCO per voice)
- LFO - One
- Filter - 12 dB/oct lowpass and highpass filtering
- Effects - None
- Keyboard - 49 keys (pressure sensitive, route to various destinations)
- Memory - 13 preset, 1on panel
- Control - CV/Gate
- Date Produced - 1976
Yamaha CS-60
Specifications:- Polyphony - 8 voices
- Oscillators - 1 VCO per voice (square and saw plus PWM; 1 sub-osc with 4 wave types; noise gen)
- Memory - 12 presets, 1 user patch
- Filter - High- and low-pass with resonance and ADSR envelope
- Arpeg/Seq - None
- Keyboard - 61 keys (aftertouch)
- Effects - Ring Modulator
- Control - CV / Gate
- Date Produced - 1977
Yamaha CS-70m
Specifications:- Polyphony - 6 voices
- Oscillators - 12 VCO's (2 per voice)
- LFO - 2 LFO's (1 is programmable)
- Filter - 12 VCF's (2 per voice, 12dB each) with envelope generator
- VCA - 12 VCA's (2 per voice)
- Keyboard - 61 keys with aftertouch
- Memory - 30 voice memory
- Control - None
- Date Produced - 1981-84
- PLAY - CS-70m mix
Yamaha CS-80
Specifications :- Polyphony - 8 times two patches
- Oscillators - saw, square, sine wave, noise, PW and PWM, LFO
- LFO - 5 waveform function LFO can modulate either or all of VCO, VCF and VCA
- Filter - HP, res, LP, res, filter ADR envelope
- VCA - mix in for the VCF out and the sine, ADSR
- Keyboard - 61 weighted keys w/ velocity and polyphonic aftertouch
- Memory - 4 Patches
- Control - external modulation input
- Date Produced - 1976-79
- PLAY - Nostalgia demo 1
PLAY - Nostalgia demo 2
PLAY - Polyphonic aftertouch
PLAY - Portamento and glissando
PLAY - Ring modulator in use
PLAY - Warm bass
PLAY - New age flute
- Users :
- KAYKO
)
